RCB-6 Controller

RCB-6 Controller

DESCRIPTION RCB-6 is a motor controller for smart house applications. This device is used to control 6 motors which can move light loads (i.e. blinds) or heavier loads (i.e. drapes). The RCB-6 Controller is used in conjunction with 6 single phase reversible motors, each of which have a 120 VAC rating and a 2.5 A maximum. A low voltage 3 wire DC control bus is provided to simplify the external control wiring. This system is set up for easy interfacing with control computers or security systems. One advantage of the motors controlled by RCB-6 is that they can be run from a multitude of locations by simply paralleling the input controls.

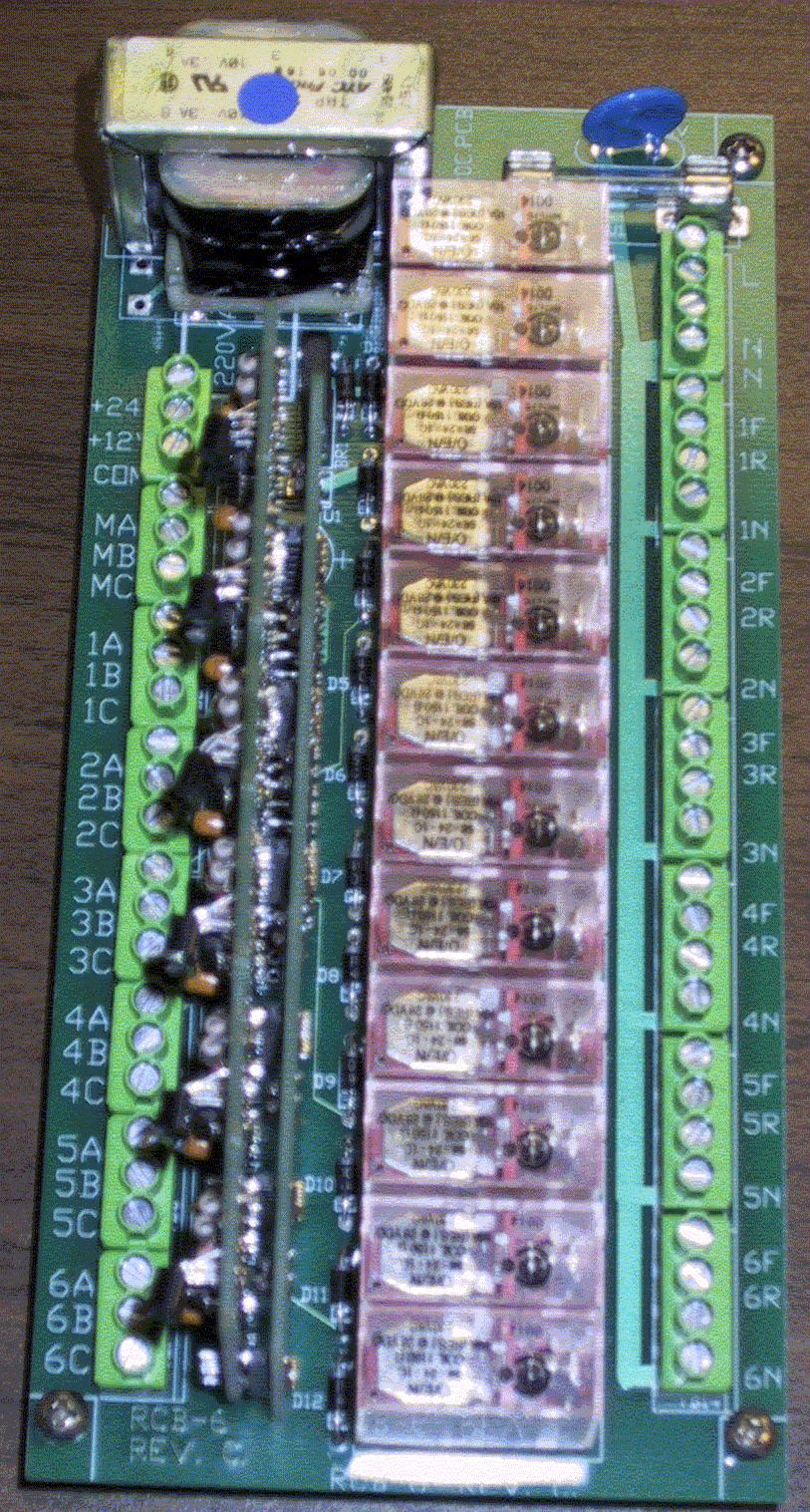

The RCB-6 is a flexible system consisting of a relay module and optional logic modules. The relay board houses electromechanical relays, DC power supply and a universal header for interconnecting the logic modules.

The RCB-6, with relays only, is used in the simple installations. Momentary, or maintained switches can be used, depending on the control configuration: Momentary switches (with spring return to OFF) are required for paralleled controls to avoid conflicts. Otherwise, maintained two position switches are typical for this type of controls.


The RCB-6 controllers with logic modules can be used for more complex installations. Use of momentary switches allows operation from multiple control locations. The M-61 logic module features master (group) controls only. On the other hand, the M-62 module allows master and individual controls. Control computers or security systems can interface with RCB-6 using 'A' Form dry relay contacts rated 0.1 Amps min.; one contact for each direction. RCB-6 is housed in a steel enclosure (Board only is also available when ordering, please see ordering selection at: http://www.skymatic.com/Ordering_rcb.pdf) . Knock outs are provided in three different sizes to allow for easy installation. The external wiring should be installed according to electrical code and should only be done by qualified personnel.


Power Requirements: 120VAC, 15A, single phase
Control Voltage Relay Board: 28VDC, Logic Modules: 12VDC
Number of Motor Drives 6
Output Contact Rating:   120 VAC, 10A max. esistive
Operating Temperature -10C to +50C
Duty Cycle Continuous
Dimensions: 8x8x4 in.
Mounting Position: As Required
Terminal Wire Size: No. 16 to 20AWG

LIMITED WARRANTY
Skymatic Controls inc. believes in the quality of its products. As a result, Skymatic Controls Inc. warrants that the product is free from defect of material or workmanship when used within specifications. At its sole discretion, Skymatic Controls Inc. agrees to repair, replace or refund the purchase price of the defective product if written notice is received within TWO (2) years of the date of purchase. Shipping costs are to be assumed by the customer. Skymatic Controls Inc. assumes no liability, expressed or implied, beyond the obligation to repair, replace or refund the purchase price of the defective product. This warranty is invalid if the product has been modified, repaired, or altered in any way not authorized previously by Skymatic Controls Inc. in writing.
