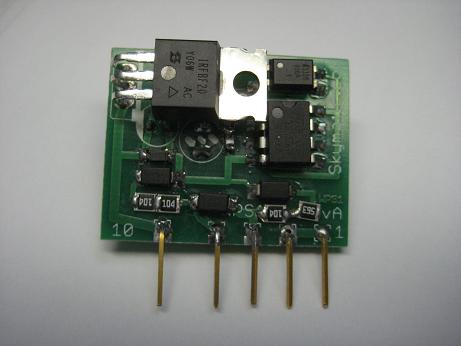

WPS1 - Wide input voltage range Power Supply:

WPS1 is a DC to DC down converter designed to accept wide range of input volts, making it ideal power supply for contactor coils, solenoids or solar panels. Pinout is compatible with Panasonic EHDRD3363 DC-DC converter.

Models: WPS1N524 -24V to -600V Input range, 5W, -24V output
Absolute Maximum Ratings:
Input Volts: 750 Vdc
Operating Ambient Temperature: -30 to +70°C
Storage Temperature: -40 to +85°C
Operating Ratings:
Input Voltage range (Vin): 24 to -600 Vdc
Output Voltage (Vout): 24 Vdc +/- 5%
Output Current (Iout): 200mA max.
Output ripple voltage: 0.2V
Efficiency: 50 to 95%
Dimensions 36mm x 28mm


Technical Information:

WPS1 Power Supply

Application Notes

Ordering Information:

WPS1 Ordering
